Spikre

Posted - 2007 April 11 :  11:51:13 AM  Show Profile

was sort of surprised to see the USRA DS car listed as a needed HO Car !!
there are 3 sources in HO,althought one is getting scarcer:
Westerfield
Ertl
Accu-Rail
what seems to be the problem ?
Westerfield has revamped thier kit for easier assembly,but many still dont warm up to Resin kits !
Ertl was rather nice and could be had for bargain prices until recently.now they are
getting a bit harder to locate.
Accu-Rail is an easy Shake the Box kit,it is easily detailed and up-graded to excellent Status !
Needed:
a good Shake the Box USRA Single sheathed Car !!
it gets a bit tedious assembling the various Tichy variations,but thats the best way for now.
Westerfield may still have thier USRA SS kit
available ? but again its a Resin Kit.
guess maybe some one wants an Atlas Steam Era Classic version ?
GATOR1,GATOR2,GATOR1
Spikre-4265+ 8756 !!
Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Country: USA | Posts: 5356

Lou DiGrazia

Posted - 2007 April 11 :  1:08:01 PM  Show Profile
Hey Spikre, which roads is the Accurail car accurate for? (Or at least real close.) Thanks.

Lou DiGrazia




Country: USA | Posts: 446 Go to Top of Page

Orsonroy

Posted - 2007 April 11 :  3:34:53 PM  Show Profile
Count me OUT for a USRA DS or SS car. With the options you've mentioned above there are way too many on the market (I know; I've got a few of each!)

Now what we NEED is a USRA STEEL boxcar. These cars were "only" used by the NYC and their affiliates (just as the X29 was "only" used by the Pennsy), but woth 30,000+ built every 1920-1970 modeler needs at least one! (thankfully, there's a solid rumor out that one's in the works in plastic).

I think what Atlas should come out with instead is a NYC-pattern 38 foot DS boxcar (trussrod AND fishbelly steel underframes!). They're a unique design, but there were thousands more of these cars on the road than all of the USRA and clone cars combined!


Ray Breyer

Modeling the NKP in Peoria, 1950.
"Steam: the only choice!"

Country: USA | Posts: 649 Go to Top of Page

gna

Posted - 2007 April 11 :  6:09:11 PM  Show Profile
quote:
Originally posted by Lou DiGrazia

Hey Spikre, which roads is the Accurail car accurate for? (Or at least real close.) Thanks.

Lou DiGrazia





Not to speak for Spikre, but I think the Frisco received the most USRA DS cars, 3,500 cars. See http://www.steamfreightcars.com/gallery/boxauto/slsf128209main.html

Other railroads that used these cars were the Great Northern and the Minneapolis & St. Louis. Accurail has a model decorated for all of these roads. I'm not certain how accurate it is, but it looks close to my eye.


Gary

"The lyf so short, the crafte so longe to lerne."

Country: USA | Posts: 438 Go to Top of Page

Spikre

Posted - 2007 April 11 :  7:40:06 PM  Show Profile

Lou,
24,500 USRA DS boxcars were built,most went to middle America roads,but DL&W had a fleet.
500 cars with Ventilators were built for FEC,they brought the total up to 25,000 !
many were rebuilt in the 30s with Steel Sheathing,some were rebuilt in kind and sold to
other roads by firms like Hyman-Michaels.
will get a list worked up later !!
the Accu-Rail car is rather nice and can be detailed easily.
the NWP "Overnite" car by Accu-rail is well done,several runs have sold out !!
GATOR1,GATOR2,GATOR1
Spikre-4265+


Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Country: USA | Posts: 5356 Go to Top of Page

Edwardsutorik

Posted - 2007 April 11 :  8:58:40 PM  Show Profile
As at least one of the people who said they'd like a USRA double sheathed box, I'll say that I want one in styrene with detailing on a level of the Athearn 2970 ACF car, or maybe their Santa Fe reefer. Oh, yeah, I'd like it to be "in production", not just available on e-bay. I think that lets out Westerfield, Ertl, and Accurail.

Yeah, a steel USRA car would be nice too.

But, the SP&S had them (the woodies) and converted many to wood-chip service--cars of particular interest to me. I am thinking of building them from "scratch". I got some Tichy ends to see if I could use them. I can, if I'm willing to accept cast on ladder verticals--I'd prefer not to.

Ed



Country: USA | Posts: 1671 Go to Top of Page

Spikre

Posted - 2007 April 12 :  2:48:24 PM  Show Profile

Lou,
as per MM Jan/Feb 1980:
ATSF
ACL
B&M
C&WC
CB&Q
CRI&P
CSPM&O
DL&W
DT&I
EJ&E
GTW
GN
KCS
M&StL
MP
NYC,CCC&StL,T&OC
NWP
PM
SLSF
SP&S
Wabash
for Ed:
Scratch Building Article with Evergreen Styrene,
MM,March/April 1980 !!
GATOR1,GATOR2,GATOR1
Spikre-4265+ 8775 !!


Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Country: USA | Posts: 5356 Go to Top of Page

Edwardsutorik

Posted - 2007 April 12 :  9:22:19 PM  Show Profile
Well, yeah, sure!!!

Ed



Country: USA | Posts: 1671 Go to Top of Page

Steve Wagner

Posted - 2007 April 12 :  9:26:54 PM  Show Profile
Ray, Ed and others interested in the New York Central System's early steel boxcars, take a look at the March issue of RailModel Journal. (I bought mine today.)


Edited by - Steve Wagner on 2007 April 12 9:28:16 PM

Country: | Posts: 2592 Go to Top of Page

Orsonroy

Posted - 2007 April 13 :  08:23:25 AM  Show Profile
Steve,

I saw that article, and have heard the "official rumor mill" over at STMFC. Of course, we can't actually talk about the new item until it hits the press, but I think I'll be VERY satisfied!


Ray Breyer

Modeling the NKP in Peoria, 1950.
"Steam: the only choice!"

Country: USA | Posts: 649 Go to Top of Page

jon grant

Posted - 2007 April 16 :  7:24:58 PM  Show Profile
Just finished building my first Tichy kit, although I have yet to apply the decals.

For some strange reason I couldn't get the coupler box at the right height and had to fit offset shank Kadees. Is this a problem with the kit - or me (I used kadee bettendorfs and filed as much of the post away as possible, too

Jon


Sweethome Chicago is now on Facebook

Sweethome Alabama is now on Facebook

Hudson Road is now on Facebook

My Videos

My Railimages

Country: United Kingdom | Posts: 1635 Go to Top of Page

Spikre

Posted - 2007 April 16 :  8:14:36 PM  Show Profile

Jon,
is the coupler too high,or too low ??
Gould Tichy Items were close to scale and generally low !!
will check one later.
GATOR1,GATOR2,GATOR1
Spikre-4265+ 8810 !!


Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Country: USA | Posts: 5356 Go to Top of Page

jon grant

Posted - 2007 April 17 :  04:08:35 AM  Show Profile
Bob,
I have found the same with the tank cars, and the low coupler is usually rectified with a couple of washers. However the boxcar coupler box was decidedly high and a high-set shanked coupler was needed.

I'll post a pic tonight.

Jon


Sweethome Chicago is now on Facebook

Sweethome Alabama is now on Facebook

Hudson Road is now on Facebook

My Videos

My Railimages

Country: United Kingdom | Posts: 1635 Go to Top of Page

Spikre

Posted - 2007 April 17 :  10:47:28 AM  Show Profile

Jon,
its the Kadee trucks !!
try a set of Tichy or Accu-Rail Andrews trucks and compare the hieghts !!
the Tichy car is a Single Sheathed USRA,will post a roster of them shortly !!
but an Atlas Steam Era Classic USRA SS would be WELCOME also !!
GATOR1,GATOR2,GATOR1
Spikre-4265+ 8814 !!



Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Country: USA | Posts: 5356 Go to Top of Page

jon grant

Posted - 2007 April 17 :  4:47:18 PM  Show Profile

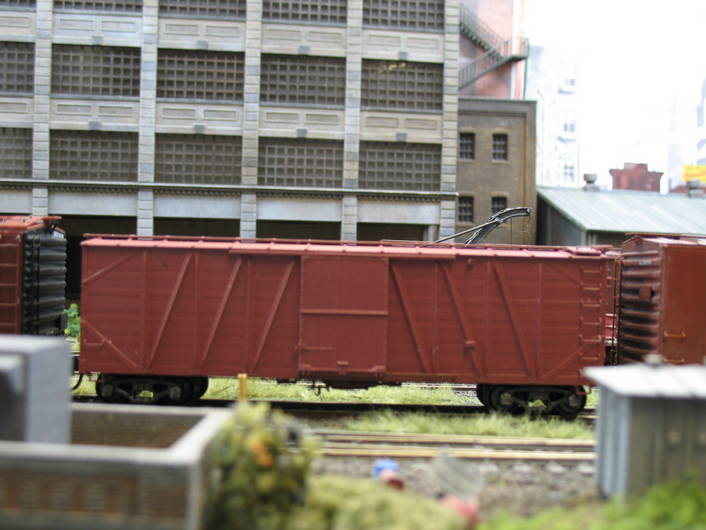

Here is my Tichy USRA boxcar (painted in 'warm aubergine' - it was the only spray I could find)

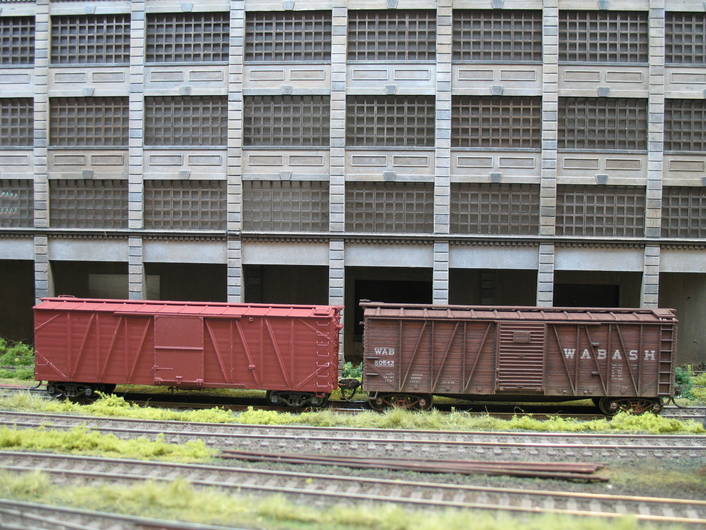

Compare it to the Accurail version

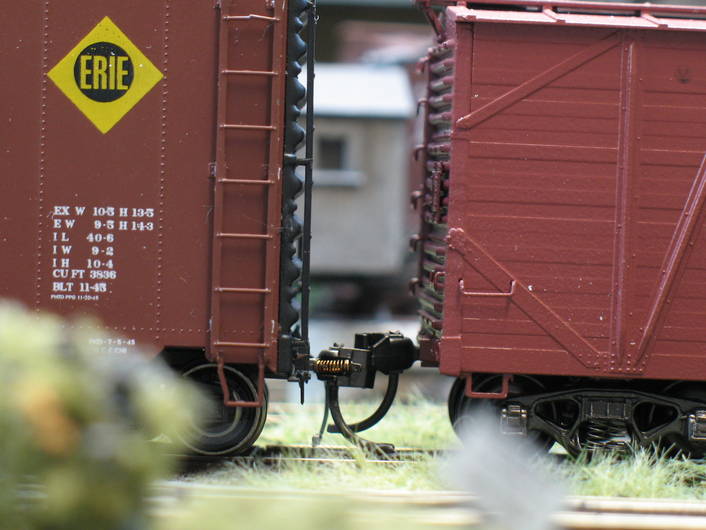

I replaced the over-shank couplers with standard #5s and filed down some more of the truck beam. here it is against a Kadee boccar




...and a Branchline one




I think the Branchline car will be receiving the treatment.


Bob, I have some boxcar decals for MONON, and DLW. Did either of these have SS boxcars, and if so, did they bother with the slogans?

Jon



Sweethome Chicago is now on Facebook

Sweethome Alabama is now on Facebook

Hudson Road is now on Facebook

My Videos

My Railimages

Country: United Kingdom | Posts: 1635 Go to Top of Page

Spikre

Posted - 2007 April 17 :  7:24:15 PM  Show Profile

Jon,
not sure about the Branchline car,but it should be close to correct,
a slight variation in height isnt a problem with # 5s,but may be with Scale Sized Knuckles ??
All USRA cars were built with 40,50,or 70 ton Andrews trucks - gondolas.
some of the boxcars were rated at 40 tons,the Double sheathed mainly.[]
the Accu-Rail SS car is based on the CN cars built from about 1916 to about 1927,both single and double door,and high and low bodies,the A-C is based on the High Body.its a good stand in for USRA Clones built with Z Bar braceing
dureing the 20s.
Tichy does have the As Built USRA SS,D&H Cement car rebuild,Georgia steel side conversion,P&LE Complete steel rebuild,and the CP Clone with 2 piece ends !!
a nice varity !!
cars built in the 20s with Zs or Pressed Braceing usaully had 2 piece ends,some were taller,some lower,some with double doors.
GATOR1,GATOR2,GATOR1
Spikre-4265+ 8816 !!


Erie,America's 1st Trunk Line !!
Piermont N.Y. to Dunkirk N.Y.,1848 !!!
Waiting For Skip's Train To Pull Into Hillside Station !!



Edited by - Spikre on 2007 April 18 3:44:40 PM

Country: USA | Posts: 5356 Go to Top of Page
